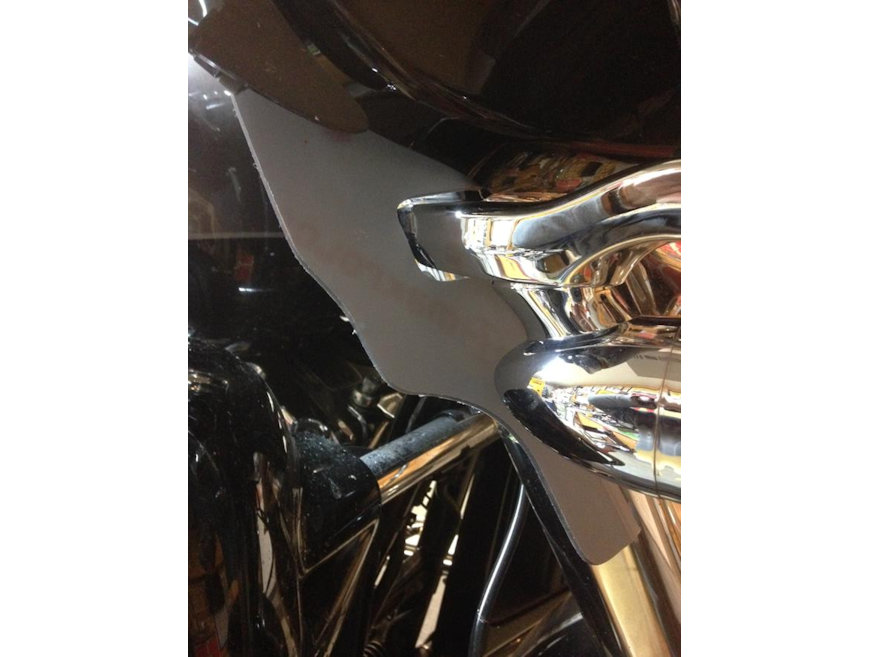

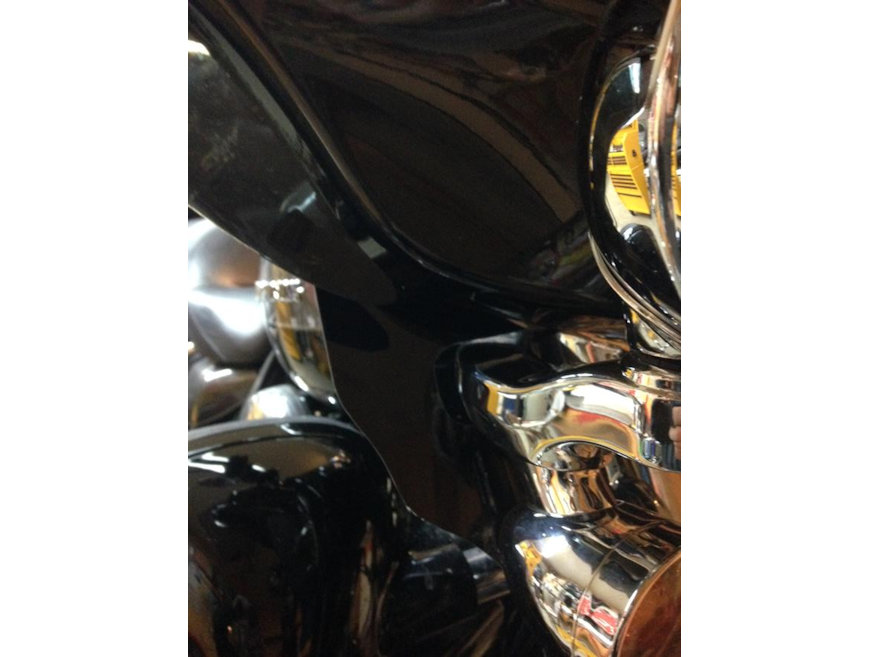

EGADS Electra Glide Air Deflector System – After many requests, we have developed an Air Deflector for the late model Harley-Davidson® Electra Glide using the cast spot lamp bracket. There is a cutout made to encompass the new spot lamp arm. Verify that your bike has the same spot lamp bracket shown in the picture.
The EGADS is crafted using high quality, high impact Dark Smoke Polycarbonate Instructions and all hardware included Softens the wind and turbulence allowing you to hear your sound system.
Works in conjunction with the GADS LTTD (Lower Triple Tree Deflector)
MADE IN THE USA
Installation Instructions View Colors
EGADS by GADS
Installation instructions for cast aluminum brackets
Various Electra-Glide 2013 and up
Package includes,4 spacers, 4 stainless bolts, 4 stainless washers, 2 deflectors
EXTREMELY IMPORTANT: Finish first side before beginning the second!!
- Start by covering the front fender and lowers
- Remove the spot lamp bracket (rest the bracket on the covered lowers and crash bar, use caution with the electrical connection)
- Remove original mounting studs
- Remove the protective film from deflectors
- Install washers on bolts
- While holding the bracket, nest the deflector around it aligning holes
- Put the spacer in the top pocket of the bracket while aligning holes
- Install top bolt with washer through bracket, spacer and deflector then loosely thread bolt into place. (You may have to move the fairing around a little to align holes)
- Make sure the electrical plug is tucked in behind bracket then repeat steps with the lower bolt and spacer
- Tighten bolts to manufacture requirements
- move to the other side and repeat
Proudly made in the U.S.A.
www.glideairdeflectorsystem.com
Thank you for your support
